¶ Twig Eon

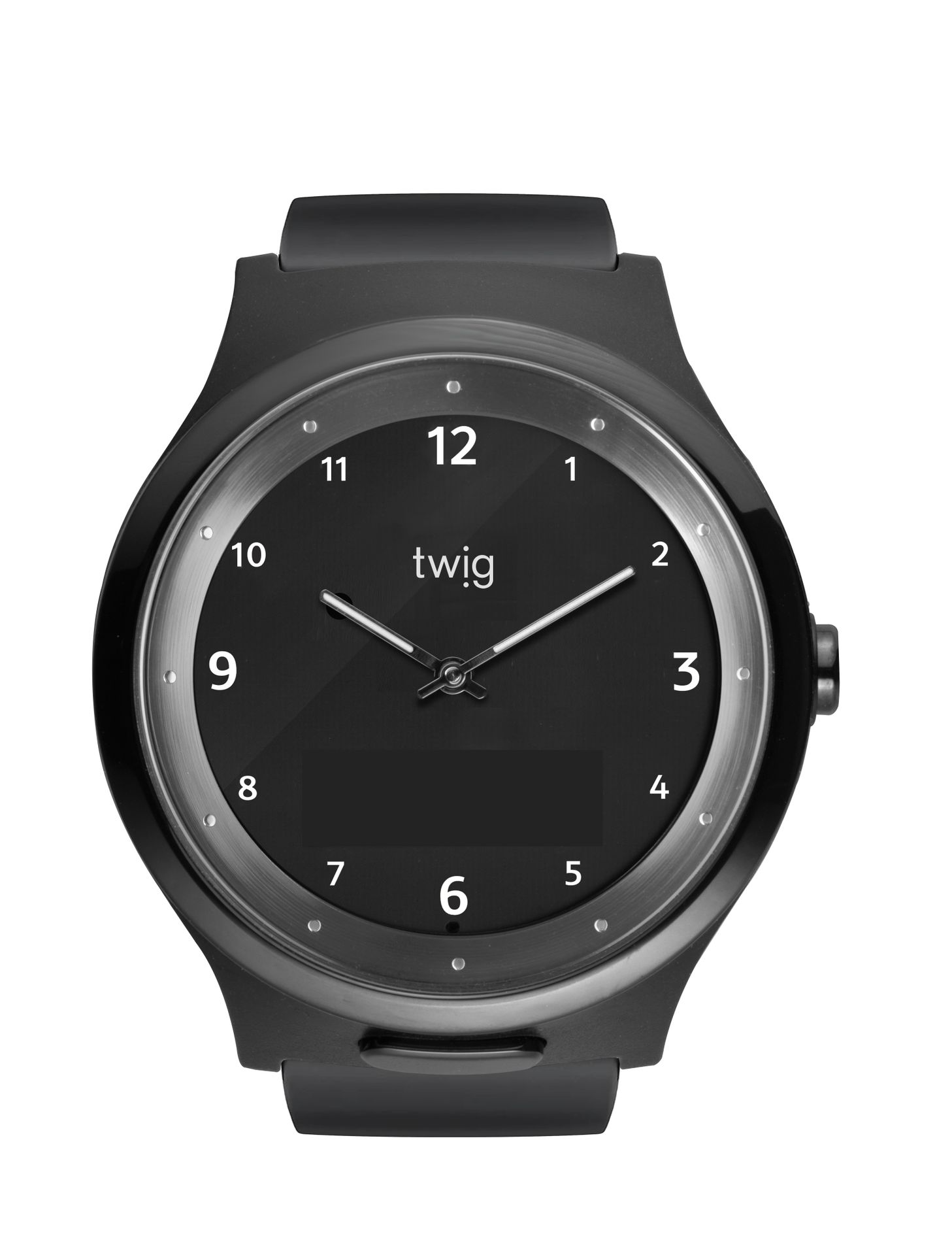

The Twig Eon is a personal alarm device from the manufacturer Twig. It is a very discreet alarm device as a functional watch.
| manufacturer | Twig |
|---|---|
| device type | Eon |
| protocol | MPTP |
| size | 46 (diameter) x 14 (thickness) mm |
| weight | 46 g |
| battery capacity | 500 mAh |
| IP rating | IP67 |
| SIM slot | eSIM |
| communication | LTE Cat-M1 |
| speech and sound | microphone, speaker |
| vibration | yes |
| NFC | no |
| Bluetooth | yes |
¶ Features
| Category | Feature | Available | Notes |
|---|---|---|---|
| alarm | SOS | yes | SOS button |
| man down | yes | non movement | |
| communication | voice | yes | two way |
| on screen message | no | TWIG has this under development | |
| tracking | satellite | yes | GPS, A-GPS assistance |
| beacon | yes | BLE | |
| others | battery event | yes | low battery |
| charging event | yes | docked, undocked | |
| quick button | no |
¶ Configuration options
The platform offers an easy to use configuration interface to configure this device over the air. The following configuration options are available.
| Category | Feature | Configuration option |
|---|---|---|
| man down | enabled | yes, no |
| trigger | no movement | |
| time to pre-alarm | 10 s, 20 s, 30 s, 60 s, 2 m, 5 m | |
| duration of pre-alarm | 5 s, 10 s, 20 s, 30 s, 40 s | |
| Positioning | periodic tracking | disabled, 1m, 5m, 30m, 60m |
¶ Settings to connect to the platform
This device cannot be connected to the Cuebly platform using the SMS feature to configure the first configuration, because the device does not support SMS. Therefor, add the device to TwigPoint and change setting 2515 to ‘app.cuebly.com’ and setting 2516 to ‘8484’.
| server URL | app.cuebly.com |
|---|---|
| port | 8484 |
| protocol | MPTP |
| service number | GPRS |
| connection mode | always |
| ID | -- |
